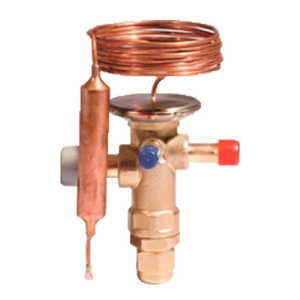

Expansion valve & orifice

The expansion valve removes pressure from the liquid refrigerant to allow expansion or change of state from a liquid to a vapor in the evaporator.

#	VALVE SERIES	MODELS
1	TIE SERIES & TI1 SERIES	TIE1HW100 TIE2RW70 TIE 2 ВЅ FW35 TIE1FW35 TIE2FW35 TIE2HW100 TIE ВЅ FW35 TIE3RW70 TIE3HW100 TIE-SW TIE Вѕ RW70 TI1FW35
2	TCLE SERIES	TCLE-10HW100 TCLE12HW100 TCLE5C TCLE1HW100 TCLE3HW100 TCLE 7 ВЅ HW100 TCLE5HW100 TCLE12HC TCLE2HW100 TCLE3.5MC TCLE3FW100 TCLE3HA100 TCLE5.5MC TCLE5HCA TCLE7 ВЅ FW TCLE7 ВЅ MW
3	TRAE SERIES	TRAE15W TRAE20HW TRAE30HW TRAE50HW TRAE70HW TRAE40HW TRAE60HW/HC100
4	TJLE SERIES	TJLE1100FW TJLE14HW/HC100
5	THR AND TIR SERIES	THR100HW THR75HW THR55 THR68 TIRW70 TIR55HW
6	TER SERIES	TER15FW TER16RW TER19MC TER22HW TER25FW TER25MC TER26HW TER35HW TER45HW
7	TFES SERIES	TFES16ZAA
8	TJRE SERIES	TJRE12MC TJRE18HW/HC100
9	TMR SERIES	TMR100HW TMR68
10	TX SERIES	TXV TGEX4 TX2 TX6

#	VALVE SERIES	MODELS
1	TEX SERIES	TEX12 TEX2 TEX20 TEX2-4.5 TEX5 TEX55 TEX7.5
2	TF2, TEF2 SERIES	TF2 TEF2
3	TDEX SERIES	TDEX/TGEX11 TDEX/TGEX12 TDEX/TGEX15 TDEX/TGEX7.5
4	TES SERIES	TES2 TES20 TES5 TES55
5	TGEX SERIES	TDEX/TGEX11 TDEX/TGEX12 TDEX/TGEX15 TDEX/TGEX7.5 TGEX18 TGEX26 TGEX30 TGEX38
6	TER SERIES	TER15FW TER16RW TER19MC TER22HW TER25FW TER25MC TER26HW TER35HW TER45HW
7	TDEBX SERIES	TDEBX20
8	TEN SERIES	TEN2 TEN20/HC100 TEN5 TEN55
9	TEY SERIES	TEY2
10	TEZ SERIES	TEZ12 TEZ2 TEZ5 TEZ55
11	TGEL SERIES	TGEL15 TGEL19 TGEL3.5 TGEL4.5 TGEL6.5 TGEL9
12	TN2 SERIES	TN2
13	TS2 SERIES	TS2
14	TX SERIES	TX2 TX6
15	TY SERIES	TY2

#	VALVE SERIES	MODELS
1	SPORLAN TYPE O EXPANSION VALVE	Sporlan Type O valve is a brass bar body, externally adjustable valve with ODF solder connections. The thermostatic element is replaceable, and the inlet connection has a permanent 12 mesh strainer. This valve type features a balanced port construction, and it is designed for both air conditioning and refrigeration applications. A synthetic seating surface provides tight shut-off during system off periods. This valve type has two body styles: a small body which provides capacities up to 30 tons R-22 and 35 tons R-410A, and a large body which extends capacities to 70 tons R-22 and 60 tons R-410A. -Outlet Connections 1-1/8" ODF, 1-3/8" ODF, 1-5/8" ODF
2	SPORLAN TYPE S EXPANSION VALVE	Sporlan Type S valve is a brass bar body, externally adjustable valve with ODF solder connections. The thermostatic element is replaceable, and the inlet connection has a permanent 12 mesh strainer. This valve is designed for both air conditioning and refrigeration applications. -Outlet Connections 5/8" ODF, 7/8" ODF, 1-1/8" ODF
